100W Laser engraving cutting machine double laser head for cutting stainless iron steel price

FOB Reference Price:Get Latest Price
US $3,500-4,500 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
BCX-1260
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting, Laser Cutting
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type:
Fiber Laser, Fiber Laser
Cutting Area:
1200*600mm, 1500*3000mm Optional
Cutting Speed:
0~60m/min, 60m/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Condition:
New
Cutting Thickness:
0~16mm
CNC or Not:
Yes, Yes
Cooling Mode:
Water Cooling
Control Software:
Cypcut, Cypcut
Place of Origin:
Hubei, China (Mainland)
Brand Name:
BCXlaser
Certification:
CCC, CE, ISO
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Warranty:
1 YEAR
Laser wavelength:
1070nm
Power supply:
380V 50HZ
Equipment for electric power:
13KW
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Environment-friendly packaging is used for fiber laser cutting head. And packaging can be customized.
Port
Wuhan

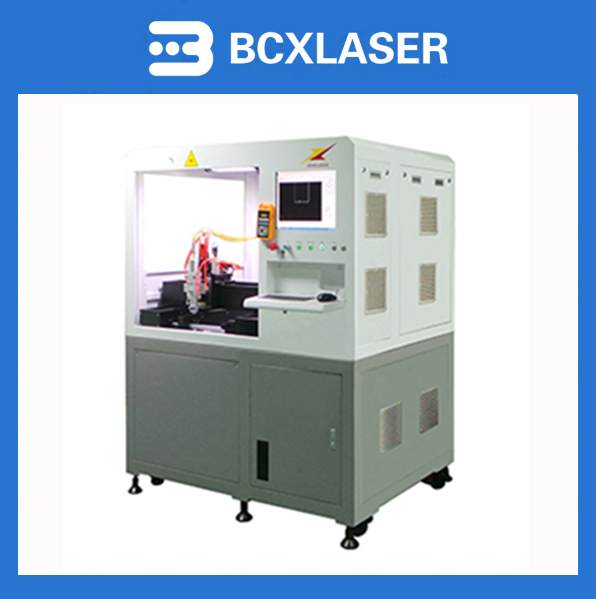

Medium scale fiber laser cutting machine

Product Description









Fiber Laser Cutting Machine Technical Parameters

Laser Type

Fiber laser

Laser Brand

IPG / Raycus

Laser Power

180W (500W/750W / 1000W / 2000W optional)

Working Table

Fixed Working Table

Control System

PMAC full-closed loop servo control

Driving Mode

Double gear rack driving

Positioning Accuracy

0.05mm

Protection System

Enclosure protection

Laser Head

Precitec / Laser Mech / XT Laser

Power Supply

AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz

Total Power

7KW~11KW

Floor Space

5.6mX3.2m (fixed table)

Standard Collocation

Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus, remote controller, etc.

Software

CutMax Laser Cutting Software or PA8000 software, Metal Nesting Software

Supported Format

PLT, DXF, BMP, AI, DST, DWG, etc.

Note: As products are constantly updated, please contact us for latest specifications.



The advantages of machine main control box

1. Machine main control box adopt sealed design and cooling exhaust fan system, which make  machine working more stability and the motherboard, driver and other electronic components will not influence the stability of every accessories because of high temperature when machine working.

2. In the wet weather season, cooling exhaust fan will vent wet gas to outside then protect motherboard, driver and other electronic components and avoid them burnout because electric plating which become from droplet form by wet gas.

Cooling exhaust system of main control box





1. The global initiative three side exhaust system of laser machine, which vent the smoke and smell more clearly when process cutting, also make the working envirement more comfortable and protect the health of operator.

2. Three side exhaust system could reduce the pollution of guide rail, lens anf other spare parts to improve machines lifetime and precision.

Enhanced left and right exhaust system

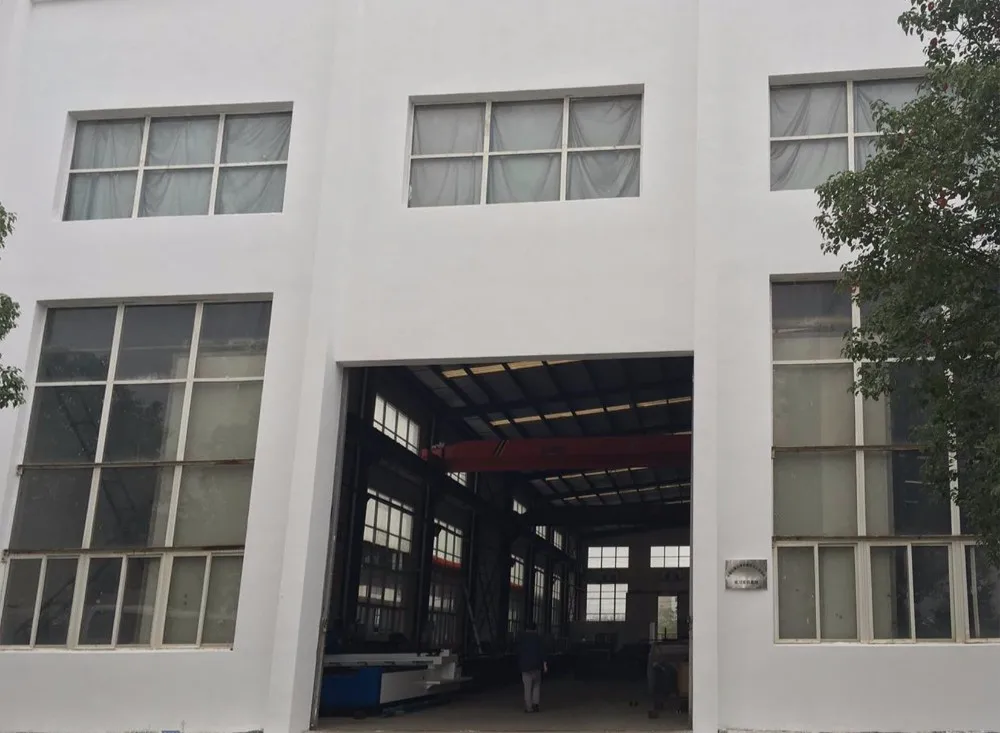

Company Information

paste-pic-dp_uuid_qp944



.jpg

  Our commitment is to continue to improve the level of technology by research and development, standardization of scientific management, excellent product quality and customer service concepts. Xintian technology has won an excellent reputation in the global market, and with Germany, the United States, Japan, Britain, Russia, Malaysia and other countries it has collaborated with well-known companies and domestic laser research institutes maintained a long-term friendly cooperation. Over the years, our products have been exported to more than one hundred countries and regions.



Certifications

8[H9Q(R1DJ2LCQW}~GC%QFB

Advantages

  Features:
1.Our products has low cost and professional tecnology .
2.Laser cutting  machine has a very fast processing,permanent cut.
3.100% high quality and portable. It can Long time continuous process.
4.Please believe in us that can make you take it easy.Air cooling, no water chiller.
5. No maintenance (100,000 hours service time); Low operation cost
6.Repetitive high precise, Rapidcutting speed
7.Easy to use by unskilled operator.



Packaging & Shipping
SizeDepending on the  size of the product
Weight Depending on the weight of the product
Packing DetailsThe normal package is wooden box(Size:L*W*H)If export to countries,the wooden box will be fumigated.If container is too tigher,we will use be film for packing or pack it according to customers special request.
Contact us

3

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden box. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 5to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
